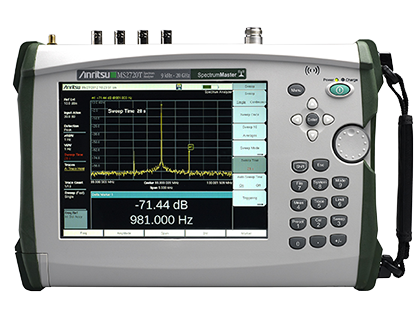

MS2720T Spectrum Master
$80,000.00
- Description
Frequency Ranges: 9 kHz to 9 GHz, 13 GHz, 20 GHz, 32 GHz and 43 GHz
Anritsu's latest generation of handheld spectrum analyzers is the MS2720T Spectrum Master. This represents the company's highest performance handheld spectrum analyzer. Exciting new features and options bring more value and speed to the user.- Broadband preamplifiers over the whole frequency range for increased sensitivity approximately 17 dB
- Three Sweep Modes: improved sweep speed, up to 100 times faster
- Resolution and Video Bandwidths from 1 Hz to 10 MHz
- New triggering choices, including hysteresis, hold-off, and delay
- More zero-span capabilities including 10 MHz RBW & VBW
- Enhanced Spectrum Analyzer Touch Screen GUI, including large marker display choice
- Choice of display options for readability: normal, black on white, night vision, color on white, or high contrast
- On-screen Interference Mapping as part of the Interference Analysis option
- LTE Measurements up to 20 MHz, plus support for Carrier Aggregation
- 30 MHz wide Zero-Span IF Output at 140 MHz center frequency for external demodulation of virtually any wideband signal
- Burst detect captures 200 μs bursts the first time, every time
- PIM Hunting for finding external IM products
